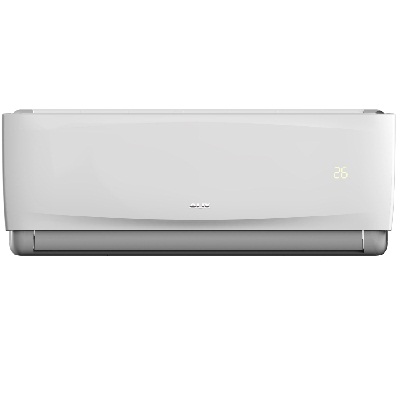

FC TYPE
2 year sparepart warranty
3 In 1 Filter
5 Year Compressor Warranty
Auto Restart
Deep Sleep Icon
Double Mute low noise and makes you sleep better
Dual Side Installation
Anti-rust indoor and outdoor
Multi Fan Speed
Use R410A refrigerant which more friendly to the environment

ASW-05A4/FCR1

- BTU : 5000
- EER(BTU/h/w) : 9.8
- Rated Power Consumption : 510W
- Rated Running Current : 2.3A
- Power Supply Source : 220-240V/50 Hz
- Refrigerant : R410a
- Refrigerant Charged : 380 g
- Air Flow Volume : 550 m³/h
- Noise Level
    Indoor: 38 dB(A)
    Outdoor: 48 dB(A)
- Net Weight
    Indoor: 8 Kg
    Outdoor: 20 Kg
- Net Dimension (mm)(W x D x H)
    Indoor: 750 x 200 x 285
    Outdoor: 663 x 254 x 421
- Packing Dimension (mm)(W x D x H)
    Indoor: 800 x 265 x 345
    Outdoor: 760 x 343 x 478

ASW-07A4/FCR1

- BTU : 7000
- EER(BTU/h/w) : 10.3
- Rated Power Consumption : 680W
- Rated Running Current : 3.2A
- Power Supply Source : 220-240V/50 Hz
- Refrigerant : R410a
- Refrigerant Charged : 650 g
- Air Flow Volume : 630 m³/h
- Noise Level
    Indoor: 38 dB(A)
    Outdoor: 49 dB(A)
- Net Weight
    Indoor: 10 Kg
    Outdoor: 24 Kg
- Net Dimension (mm)(W x D x H)
    Indoor: 850 x 197 x 300
    Outdoor: 700 x 225 x 500
- Packing Dimension (mm)(W x D x H)
    Indoor: 900 x 270 x 370
    Outdoor: 835 x 335 x 545

ASW-09A4/FCR1

- BTU : 9000
- EER(BTU/h/w) : 10.6
- Rated Power Consumption : 850W
- Rated Running Current : 3.9A
- Power Supply Source : 220-240V/50 Hz
- Refrigerant : R410a
- Refrigerant Charged : 700 g
- Air Flow Volume : 630 m³/h
- Noise Level
    Indoor: 38 dB(A)
    Outdoor: 49 dB(A)
- Net Weight
    Indoor: 10 Kg
    Outdoor: 24 Kg
- Net Dimension (mm)(W x D x H)
    Indoor: 850 x 197 x 300
    Outdoor: 700 x 225 x 500
- Packing Dimension (mm)(W x D x H)
    Indoor: 900 x 270 x 370
    Outdoor: 835 x 335 x 545

ASW-12A4/FCR1

- BTU : 12000
- EER(BTU/h/w) : 10.7
- Rated Power Consumption : 1120W
- Rated Running Current : 8.8A
- Power Supply Source : 220-240V/50 Hz
- Refrigerant : R410a
- Refrigerant Charged : 900 g
- Air Flow Volume : 630 m³/h
- Noise Level
    Indoor: 41 dB(A)
    Outdoor: 49 dB(A)
- Net Weight
    Indoor: 11 Kg
    Outdoor: 28 Kg
- Net Dimension (mm)(W x D x H)
    Indoor: 850 x 197 x 300
    Outdoor: 720 x 260 x 540
- Packing Dimension (mm)(W x D x H)
    Indoor: 900 x 270 x 370
    Outdoor: 835 x 350 x 600

ASW-18A4/FCR1

- BTU : 18000
- EER(BTU/h/w) : 11.5
- Rated Power Consumption : 1560W
- Rated Running Current : 7.5A
- Power Supply Source : 220-240V/50 Hz
- Refrigerant : R410a
- Refrigerant Charged : 850 g
- Air Flow Volume : 850 m³/h
- Noise Level
    Indoor: 46 dB(A)
    Outdoor: 52 dB(A)
- Net Weight
    Indoor: 14 Kg
    Outdoor: 35 Kg
- Net Dimension (mm)(W x D x H)
    Indoor: 952 x 228 x 310
    Outdoor: 795 x 290 x 525
- Packing Dimension (mm)(W x D x H)
    Indoor: 1000 x 295 x 375
    Outdoor: 907 x 382 x 600
